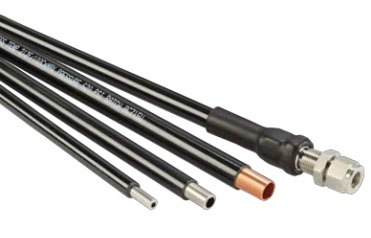

• 1/4 to 1 in. and 6 to 25mm tubing sizes available in 316/316L Stainless Steel and Copper. Other tubing materials may be offered on request.
• Seamless, welded tubing and set tube stick available in Stainless Steel and Copper.
• Coating materials available: Thermoplastic Polyurethane TPU, PVC. Other coating materials available, please contact our customer service for more details.



Tube OD mm	Wall Thickness mm	Working Pressure bar		Max Process Temperature C°	Min Service and Installation Temperature C°	Min Jacket Tube OD* mm	Support Centers m		Min Bend Radius cm
		Seamless	Welded				Horizontal	Vertical
Annealed 316 Stainless Steel Tubing complying with ASTM A213 or A269
6	1.0	420	336	105 PVC Jacket 125 TPU Jacket***	-34 Service -23 Installation	8.60	1.80	4.60	20.00
	1.2	540	432
	1.5	710	568
10	1.0	240	192			12.60
	1.2	300	240
	1.5	400	320
12	1**	200	160			14.60
	1.2	250	200
	1.5	330	264
	2.0	470	376			20.60
18	1.2**	150	120
	1.5	200	160
	2.0	290	232			27.60
25	1.8**	180	144
	2.0	200	160
Annealed Copper Tubing complying with ASTM B68, B75
6	1.0	90		1050 PVC Jacket 125 TPU Jacket***	-34 Service -23 Installation	8.60	1.80	4.60	20.00
	1.2	150
	1.5	200
10	1.0	60				12.60
	1.2	100
	1.5	140
12	1**	50				14.60
	1.2	75
	1.5	100
	2.0	130
18	1.2**	40				20.60
	1.5	60
	2.0	80
25	1.8**	40				27.60
	2.0	50

*** Maximum process temperature NOT continuous temperature rating which is 105 Deg C according to UL 1581.
Please contact us for more information about heat tolerance.

Tube OD in.	Wall Thickness in.	Working Pressure psig		Max Process Temperature °F	Min Service and Installation Temperature °F	Min Jacket Tube OD* in.	Support Centers ft		Min Bend Radius in.
		Seamless	Welded				Horizontal	Vertical
Annealed 316 Stainless Steel Tubing complying with ASTM A213 or A269
1/4	0.035	5200	4160	221 PVC Jacket 256 TPU Jacket***	-30 Service -10 Installation	0.35	6.00	15.00	8.00
	0.049	7600	6080
	0.065	10150	8120
3/8	0.035	3350	2680			0.48
	0.049	4850	3880
	0.065	6525	5220
1/2	0.035**	2650	2120			0.60
	0.049	3750	3000
	0.065	5150	4120
	0.083	6525	5220			0.85
3/4	0.049**	2450	1960
	0.065	3350	2680
	0.083	4250	3400			1.10
1	0.065**	2100	1680
	0.083	2700	2160
Annealed Copper Tubing complying with ASTM B68, B75
1/4	0.035	1400		221 PVC Jacket 256 TPU Jacket***	-30 Service -10 Installation	0.35	6.00	15.00	8.00
	0.049	2175
	0.065	2900
3/8	0.035	900				0.48
	0.049	1450
	0.065	2030
1/2	0.035	800				0.60
	0.049	1088
	0.065	1450
	0.083	1885				0.85
3/4	0.049**	580
	0.065	870
	0.083	1160				1.10
1	0.065**	580
	0.083	725

Note: Standard Coating Wall Thichness 1.3mm (0.052')
Note: Not recommended to use with Gas service
Maximum process temperature NOT continuous temperature rating which is 105 Deg C according to UL 1581.
Please contact us for more information about heat tolerance.



UTC offers its customers the unique coating service. We accept coiled (on or without reel) and straight tubes that request jacketing service. We will pick up the tubes from the customer location, coat it and ship it back. Our coating materials also include the special TPU cover, high quality low temperature PVC as well as other coating materials that may be offered on customer request.

* Service is offered according to the minimum length quantity policy, please contact our customer service for more details



*** Maximum process temperature NOT continuous temperature rating which is 105 Deg C according to UL 1581.

    * All data are based on specifications of raw material.

Build a Single, Thermal insulated or Own customer jacket tubing ordering number by combining the designators in the sequence shown below.



Ⅰ		Ⅱ		Ⅲ		Ⅳ		Ⅴ
SJ	-	SS	-	4-S-035	-	TP	-	250



SJ = Single Jacket
TJ = Thermal-Insulated Jacket
CT = Customer Tube*



SS = 316/316L Stainless Steel
CU = Copper
Other tubing materials may be offered on request







Size	Number per Inch, Number + M for MM size MM=6 , 10, 12, 18, 25 Inch: 4=1/4, 6=3/8, 8=1/2, 12=3/4, 16=1
Tube model	S (Seamless) W (Welded) ST (Stick of 6M / 19ft STD length)
Wall Thickness	Number per Inch, Number +M for MM size



TP = TPU
PV = PVC



Number per feet
Number + M per Meter



On each jacket tube will be a marking of the following:
Manufacturer name, model, Coating material, Tube data, Process temperature, Batch No. (for traceability), Meter/Feet count Optionally a Caution Notice
