• 1/4 to 1/2 in. and 6 to 12 mm tubing sizes available in 316/316L Stainless Steel and Copper.
• Seamless , welded tubing and set tube stick available in Stainless Steel
• Jacketing materials available: TPU and PVC other materials available on customer request
• Pre-Insulated tube, contributes to the personnel safety
• Light and easy for installation
• Withstand tough weather conditions and most efficient in compare to pipe usage in steam applications



tube OD	Wall Thickness	Working Pressure		Max Process Temperature	Min Service and Installation Temperature	Min Jacket Tube OD*	Support Centers		Min Bend Radius
mm	mm	bar		C°	C°	mm	m		cm
		Seamless	Welded				Horizontal	Vertical
Annealed  316 Stainless Steel Tubing complying with ASTM A213 or A269 - Max Process Temperature 250°C
6	1.0	357	286	105 PVC Jacket	-34 Service	28.60	1.80	4.60	20.00
	1.2	459	367
10	1.0	204	163			32.60
	1.2	255	204	125 TPU Jacket***	-23 Installation	34.60
12	1**	170	136
	1.2	212	170
Annealed Copper  Tubing complying with ASTM B68, B75 - Max Process Temperature 200°C
6	1.0	55		1050 PVC Jacket	-34 Service	28.60	1.80	4.60	20.00
	1.2	86
10	1.0	34				32.60
	1.2	55		125 TPU Jacket***	-23 Installation	34.60
12	1**	28
	1.2	38

tube OD	Wall Thickness	Working Pressure		Max Process Temperature	Min Service and Installation Temperature	Min Jacket Tube OD*	Support Centers		Min Bend Radius
in.	in.	psig		°F	°F	in.	ft		in.
		Seamless	Welded				Horizontal	Vertical
Annealed  316 Stainless Steel Tubing complying with ASTM A213 or A269 - Max Process Temperature 482 °F
1/4	0.035	4420	3536	221 PVC Jacket	-30 Service	1.14	6.00	15.00	8.00
	0.049	6460	5168
3/8	0.035	2850	2280			1.26
	0.049	4122	3298	257 TPU Jacket***	-10 Installation	1.39
1/2	0.035**	2250	1800
	0.049	3180	2544
Annealed Copper  Tubing complying with ASTM B68, B75 - Max Process Temperature 400 °F
1/4	0.035	800		221 PVC Jacket	-30 Service	1.14	6.00	15.00	8.00
	0.049	1250
3/8	0.035	500				1.26
	0.049	800		257 TPU Jacket***	-10 Installation	1.39
1/2	0.035**	400
	0.049	550

Note: Standard Coating Wall Thichness 1.3mm (0.052'')
Note: Not recommended to use with Gas service
Maximum process temperature NOT continuous temperature rating which is 105 Deg C according to UL 1581.
Please contact us for more information about heat tolerance.



The below tables provide the data for the loss of the heat energy in ralation to the change in the ambient temperature

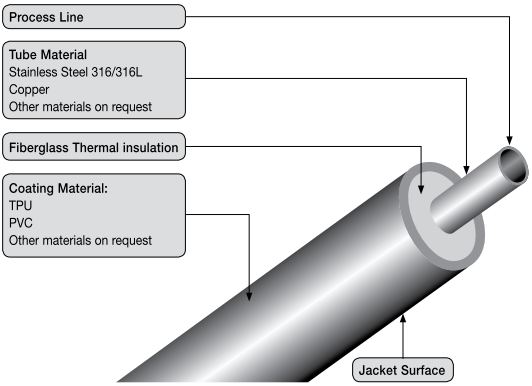

The tubes are pre insulated with special fiberglass material as well coated with TPU or PVC material.


1/4'', 3/8'', 1/2'' (6 mm, 10 mm, 12 mm) Tubing - Heat Loss in Kcal/h-m Units
Ambient Temperature °C	Process Temperature 250 °C Max surface Jacket Temperature 58 °C			Process Temperature 200 °C Max surface Jacket Temperature 48 °C			Process Temperature 150 °C Max surface Jacket Temperature 40 °C
	1/4’’ and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing	1/4’’ and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing	1/4’’ and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing
-50	48	63	70	40	52	58	32	42	46
-40	46	60	67	38	50	55	30	39	44
-30	45	58	65	36	47	53	28	37	41
-20	43	56	62	35	45	50	27	35	39
-10	41	53	59	33	43	48	25	33	36
0	39	51	57	31	41	45	23	30	34
10	37	49	54	30	38	43	22	28	31
20	36	47	52	28	36	40	20	26	29
30	34	44	49	26	34	38	18	24	27
40	32	42	47	25	32	35	17	22	24
50	31	40	44	23	30	33	15	20	22

1/4'', 3/8'', 1/2'' (6 mm, 10 mm, 12 mm) Tubing - Heat Loss in Btu/h-ft Units
Ambient Temperature °F	Process Temperature 480 °F Max surface Jacket Temperature 136 °F			Process Temperature 392 °F Max surface Jacket Temperature 120 °F			Process Temperature 302 °F Max surface Jacket Temperature 104 °F
	1/4'' and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing	1/4’’ and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing	1/4’’ and 6 mm Tubing	3/8’’ and 10 mm Tubing	1/2’’ and 12 mm Tubing
-60	53	71	78	45	59	65	36	47	52
-40	52	68	75	43	56	62	34	44	49
-20	49	65	72	40	53	59	32	41	46
0	47	69	72	38	50	55	29	38	43
20	45	59	65	36	47	52	27	36	39
40	43	56	62	34	44	49	25	33	36
60	40	53	59	32	42	46	23	30	33
80	38	50	56	30	39	43	21	28	31
100	36	48	53	28	36	40	19	25	28
120	34	45	50	26	33	37	17	22	25

NOTE: The maximum jacket surface temperature is 58 °C (136°F) with a process temperature of 250 °C (480°F), an ambient temperature of 24 °C(75.2°F) and a wind velocity of 12 km/h (7.45m/h)



Build a Single, Thermal insulated or Own customer jacket tubing ordering number by combining the designators in the sequence shown below.



Ⅰ		Ⅱ		Ⅲ		Ⅳ		Ⅴ
SJ	-	SS	-	4-S-035	-	TP	-	250



SJ = Single Jacket
TJ = Thermal-Insulated Jacket
CT = Customer Tube*



SS = 316/316L Stainless Steel
CU = Copper
Other tubing materials may be offered on request







Size	Number per Inch, Number + M for MM size MM=6 , 10, 12, 18, 25 Inch: 4=1/4, 6=3/8, 8=1/2, 12=3/4, 16=1
Tube model	S (Seamless) W (Welded) ST (Stick of 6M)
Wall Thickness	Number per Inch, Number +M for MM size



TP = TPU
PV = PVC



Number per feet
Number + M per Meter



On each jacket tube will be a marking of the following:
Manufacturer name, model, Coating material, Tube data, Process temperature, Batch No. (for traceability), Meter/Feet count Optionally a Caution Notice
